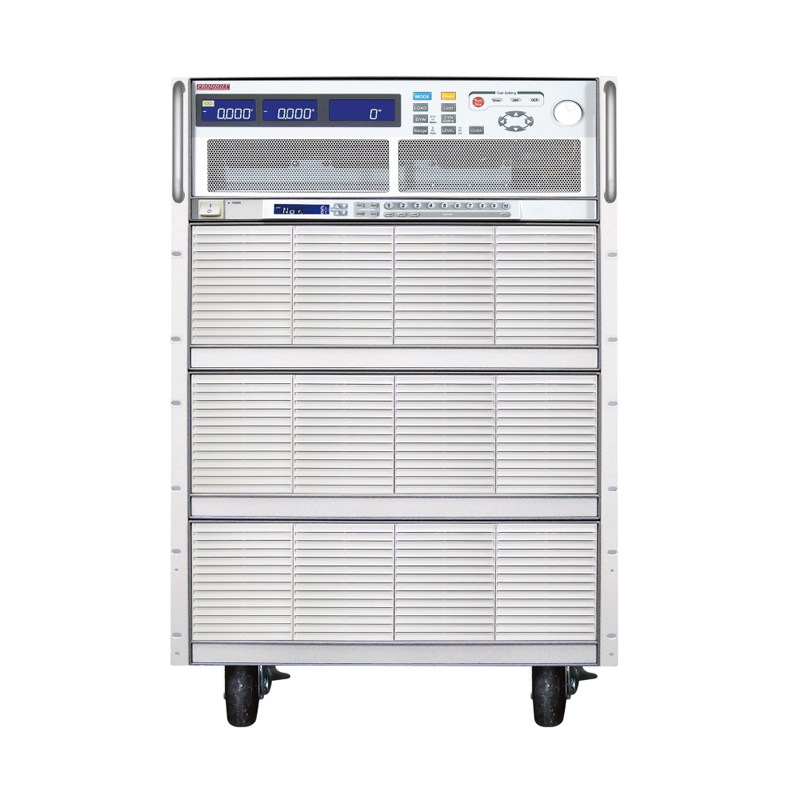

33532F-06 High Power DC Electronic Load 120V , 720A , 5400W



Description



l   33500F Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store/Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB¡BRS232¡BUSB and LAN interface.

l   SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.

l   Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.

l   Single key for OCP ¡BOPP test function will be more efficiency and accuracy on OCP¡BOPP testing.

l   Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ¡¨ +  ¡§ or ¡§ ¡V ¡§ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

l   150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.



Features



l   5 digit V/A/W Meter.

l   High-speed measurement and communication transmission.

l   Large LCD Display¡Bsetting values can be adjusted by rotary knob or push button.

l   Voltage¡BCurrent and Watt value can be displayed simultaneously.

l   OCP¡BOPP test function automatically.

l   Power ON status can be set.

l   CC, CR, CV, CP, Dynamic and Short operation mode.

l   SHORT time setting.

l   Protections against V,I,W, and ¢XC.

l   Voltage meter display the polarity positive¡]¡¨¡Ï¡¨¡^or negative¡]¡¨¡Ð¡¨¡^is selectable.

l   Optional Interface : GPIB¡BRS232¡BUSB¡BLAN.

l   New waveform generator plug in model 9923 adds user programmable battery discharge current waveform simulation to Prodigit DC Loads.

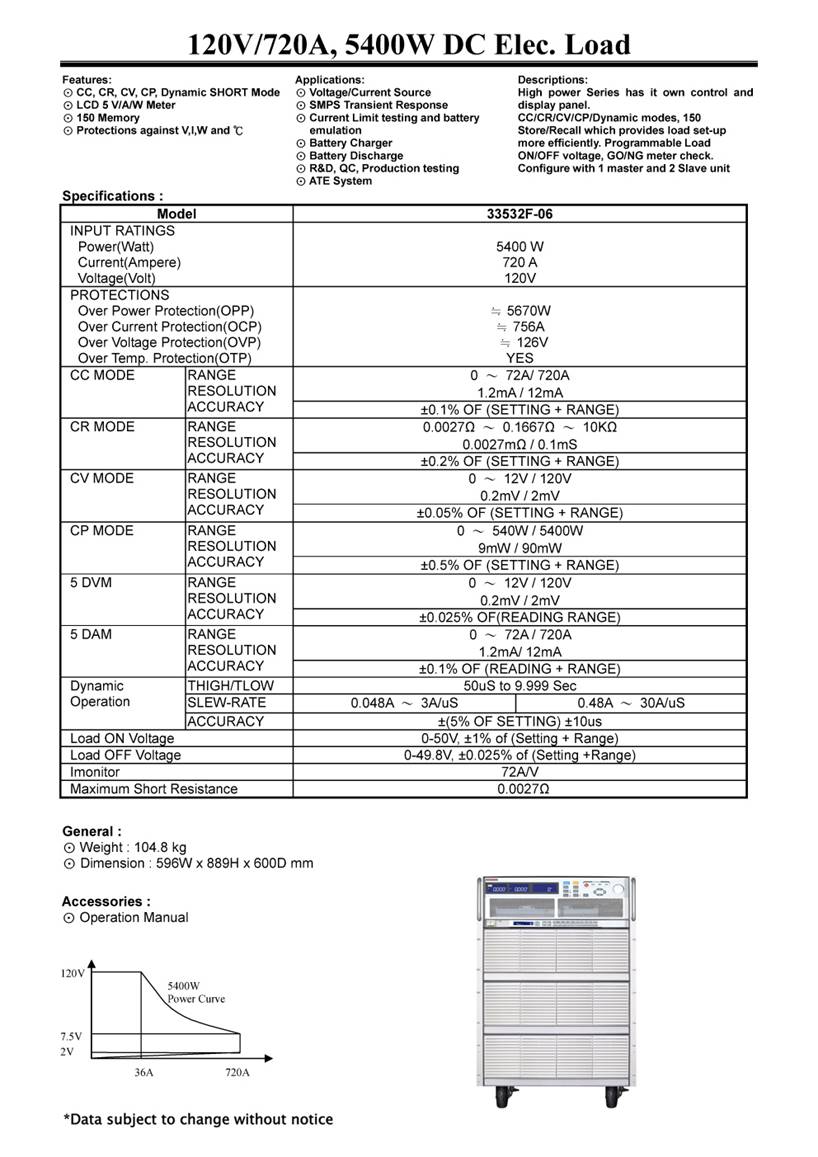

Specifications
